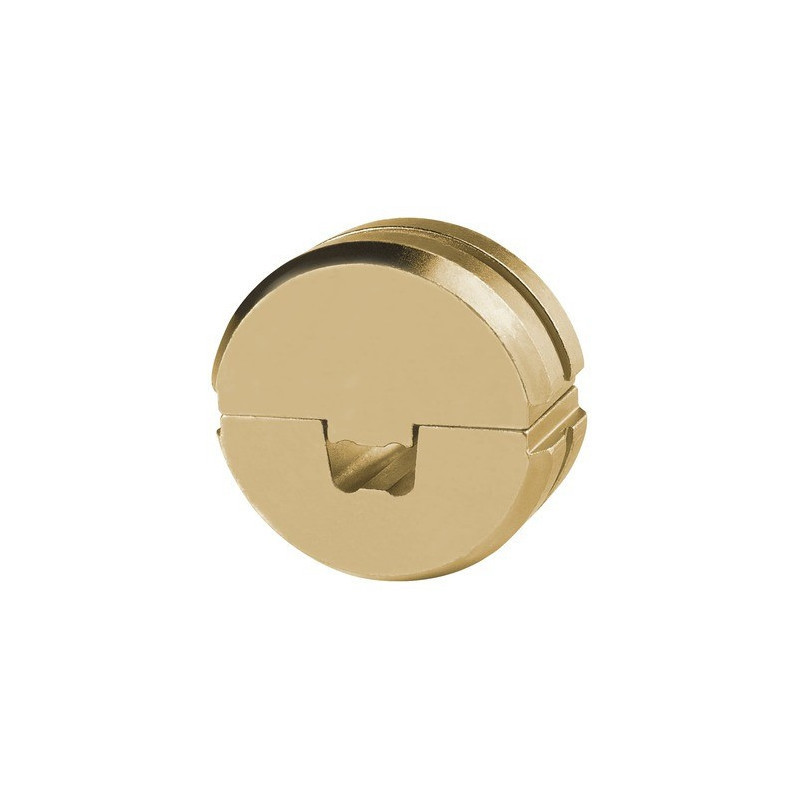

KLAUKE matryce zaciskowe serii K22, AES 22
865,00 zł
Cena netto
Regulamin zakupów
Features
suitable for
- Cable end sleeves
- Special trapezoid crimp for compacted fine stranded conductors
Additional information
- *= except THK 22
Compatibility
| SUITABLE FOR | CONNECTING MATERIAL | CRIMPING RANGE MM² | CRIMPING PROFILE |
|---|---|---|---|
| Cable end sleeves, special trapezoid crimp for compacted fine stranded conductors |
|
10 - 240 |
 |
Ordering Information
ORDERING INFORMATION
| PART NO. | CROSS-SECTION MM² | CRIMP WIDTH MM |
|---|---|---|
| AES2210S | 10 | 21 |
| AES2216S | 16 | 21 |
| AES2225S | 25 | 21 |
| AES2235S | 35 | 21 |
| AES2250S | 50 | 21 |
| AES2270S | 70 | 21 |
| AES2295S | 95 | 21 |
| AES22120S | 120 | 21 |
| AES22150S | 150 | 21 |
| AES22185S | 185 | 21 |
| AES22240S | 240 | 21 |
AES22
